Stephan® is leader in many agrofood sectors and proposes innovative technologies for cold and hot processes in the fabrication of pasteurized and sterilized products.
Stephan® machines type UMSK60E are ideal for dairy, cheese, convenience food and for high-performance installations with high level of requirement. Only flexible, automated and hygienic systems of production will satisfy the increasing demand for product with longer shelf life, without preservatives.
With Stephan® machines, cutting system, mixing, dispersion, emulsifying, homogenization, heating and cooling are possible in only one machine. Machines are fitted with a double jacket for heating and cooling in order to respond to all requirements.
The direct steam injection and inert gas injection insure a fast process of cooking and cooling of the product. The vacuum, meticulously controlled, is used to prevent the air from introducing minimice oxidation.
Stephan® equipement rationalize working times with a low cost of maintenance and easy cleaning.
Products
- Mayonnaise
- Ketchup
- Dressings
- Dips
- Baby food
- Bloc cheese
- Ready meals
- Confectionery
- Marzipan
- Dispersions
- Spreadable cheese
- Processed cheese
- Emulsions
- Chocolate
- Pastry
- Pharmacy
- Cosmetics
- Surimi

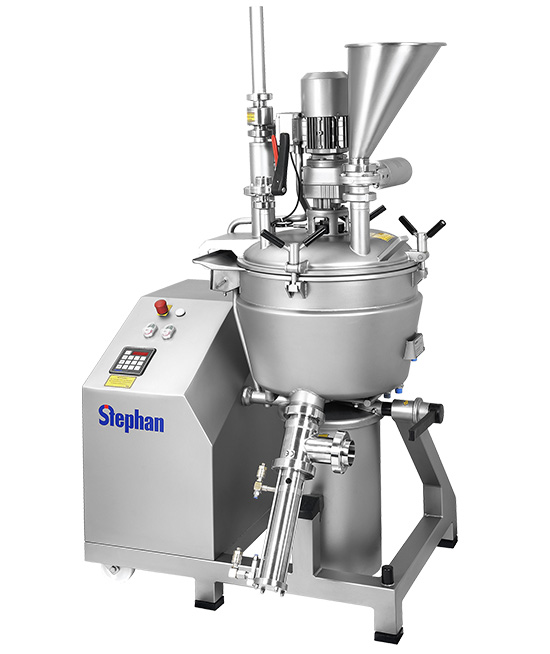

Description of the machine
Bowl size : 60 liters
Capacity : 45 liters max
Dimensions : Length 2200 x width 1500 x Height 1850 mm
Weight : 280 kg
Working process : 127°C maximum
Working pressure : 1,5 bar maximum
Parts in contact with the product : Stainless steel V2A
Machine chassis : Stainless steel V2A
Drive :
Mounted on the chassis
Direct drive of mixing baffle
Directly flanged at bearing shield
Speed : 1500 / 3000 ou 750 / 1500 / 3000 rpm.
Power : 5.5/7.5, 2.2/4.0/5.5, 8,5 kW (frequency control)
Operating voltage : 400 V , 50 Hz threephase AC
Control voltage : 24 V
Power requirement : From 8 to 12 kW
Brake motor : For main motor
Emergency button

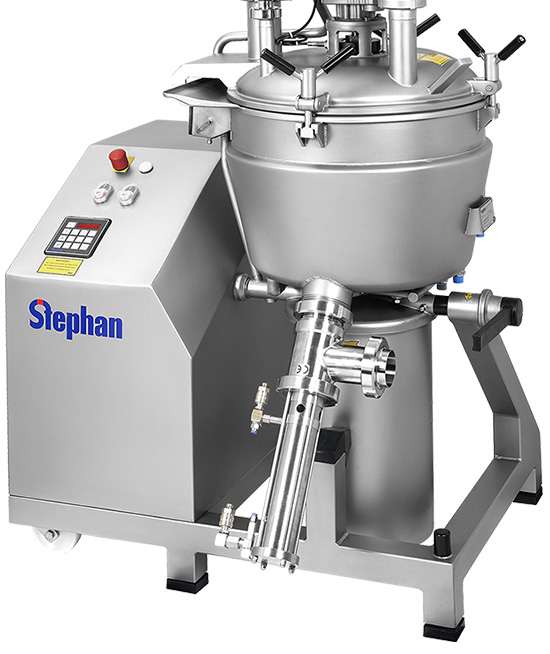

Stainless steel double jacket - water and steam, manually tiltable. Direct steam injection,
discharging connection, water dosing device, vacuum unit with pump.

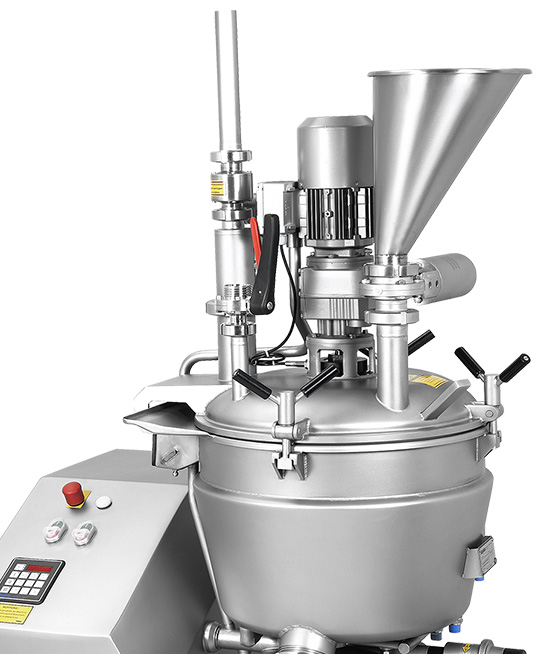

Stainless steel cover with connections
Stainless steel plugged and fixed at knife shaft with 2 knives.
Stainless steel mixing arm with scraper
Touch panel for manual operation of main motor, temperature display and for working process
time by switch
Steam delivery station, free programmable control, condensor.
Many tools : wave-cut knives, angle-bent knives, mixing insert…
Emulsions, suspensions, baby food, sauces, soups, melted cheese, convenience food, ingredients, creams…
For different volumes of production !
Please see our range of other Stephan® Universal Machines
Do not hesitate to contact us if you wish to test our machines or to schedule a demonstration on our machines in Lognes (France).
