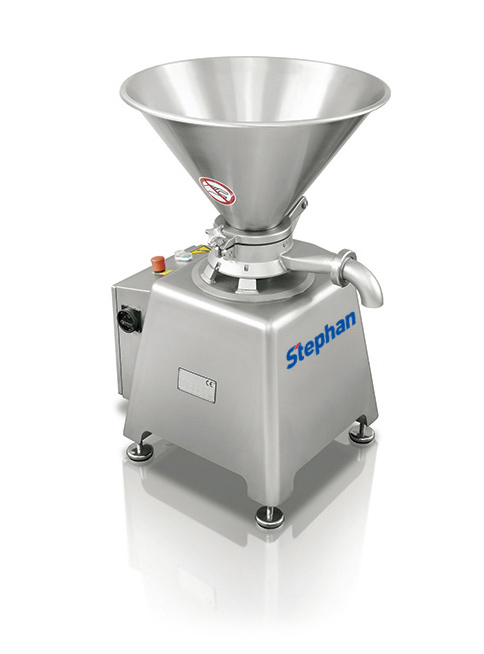

The Microcut® MC 15 is the fundamental basis for a rational work in the food process for delicatessen shops, industry and cuisine. It is the right machine where fine stuff, baby food, cooking steady emulsions, soups and sauces are produced.
For various processes, a simple cutting and a good mixing are necessary before entering the Microcut. The essential of the Microcut is the cutting system, directly flanged at bearing shield with direct drive of working tools.Thanks to its cutting system, the crossing of the products is very fast and the wanted fineness is obtained. The emulsion and liaison are ideal, without melting while cooking. There is no friction and the cutting system can work vacuously.
Avantageous of the Stephan® Microcut : a frank and neat cutting, without crushing, laminating or heating , a smooth and homogeneous product without air. Quality and fineness of the product are constant.
Excepted the sealing ring of the motor, there is no need of special maintenance. Made of stainless steel.
The Stephan® Microcut is easy using and polyvalent.
The fast time of process and easy using rationalize the work process and allows a better profitability. This machine exists in horizontal version to be placed under a cutter or a mixer.
Products
- Pet food
- Skin emulsions
- Biscuit rework
- Meat emulsions
- Emulsion diverses
- Emulsions, various
- Liver pate
- Pet food
- Baby food
Description of the machine
Loading : Stainless steel funnel or pump version
Discharging : Discharge tube DN 50
Dimensions : Length 650 x Width 630 x Height 970 mm
Weight : 130 kg
Parts in contact with the product : Stainless steel V2A
Machine housing : Stainless steel V2A
Drive :
Directly flanged at bearing shield
with direct drive of working tools
Speed : 3000 rpm
Power : 11 kW
Operation voltage : 400 V , 50 Hz
Control voltage : 110 V
Power requirement : 11 kW / 25 A curve D
Cutting Head
Emergency button
Feeding disc with feeding spiral
Slanted tooth cutting ring from 0,05 to 3 mm
Output from 300 to 1000 kg p/hour depending on product
Load part contactor control with starting-step and heater mounted in the machine housing
Control via push buttons
Recycling system, many tools, castors, pump construction
Also existing in MC 10/2 version (1500 / 3000 rpm)
Purees, stuff, emulsions, sauces...

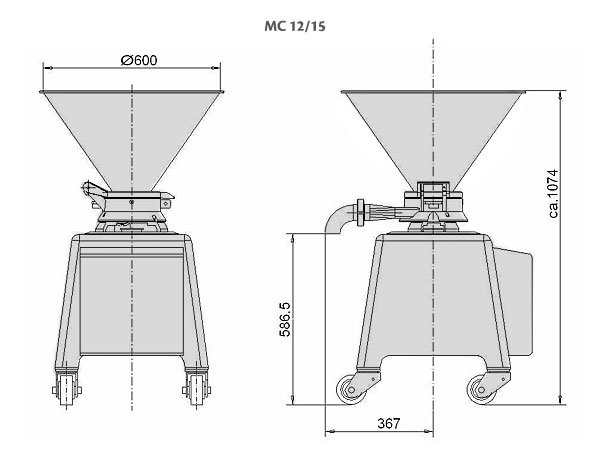

Dimensions of the machine
For different volumes of production !
Please see our range of other Stephan® Mirocut
Do not hesitate to contact us if you wish to test our machines or to schedule a demonstration on our machines in Lognes (France).
