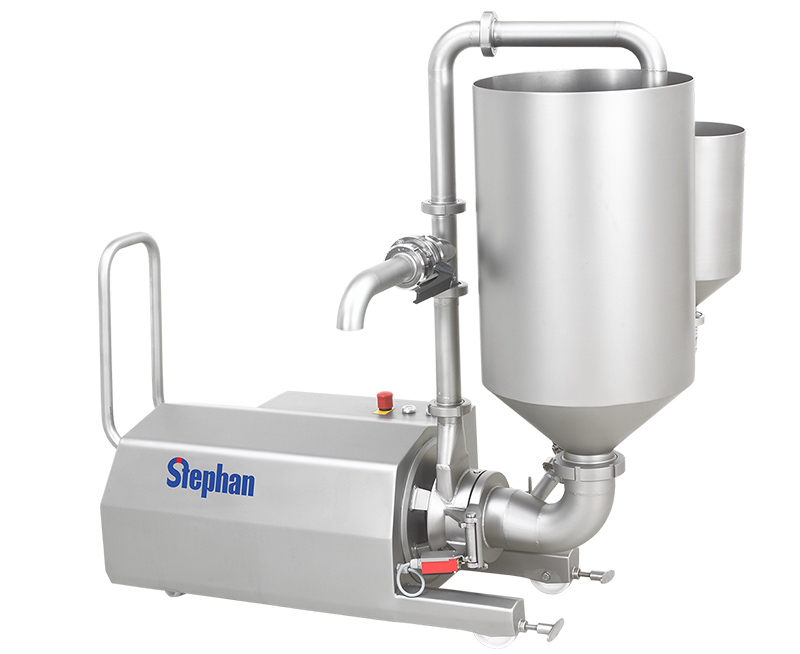

The Microcut® MCH 20 is the fundamental basis to rationalize the food process in the craftman industry, meat industry and in the restaurant food administration. It is the right machine in industries which produce fine stuff, more or less coarse stuff, sausages, baby food, cooking steady emulsions,...The Microcut® is also ideal for the production of rind emulsions.
Whatever the process is, a simple cutting and a good mixing are necessary before entering the Microcut®. The slanted tooth cutting ring system refines the product in a very short period of time up to the wished sharpness and makes emulsions without melting while cooking. The Stephan® Microcut has a an exclusive advantage : no metallic friction between the cutting tools while working.
The patented Stephan® feeding spiral and cutting system insure a smooth and fine end product, without air admission, whatever the product and fineness firstly are. Excepted the greasing of sealing ring, there is no need of special maintenance.
The Stephan® Microcut is easy using and polyvalent.
The fast time of process and easy using rationalize the work process and allows a better profitability.
Products
- Pet food
- Skin emulsions
- Biscuit rework
- Meat emulsions
- Emulsion diverses
- Emulsions, various
- Liver pate
- Pet food
- Baby food
Description of the machine
Loading : Stainless steel funnel with hinge or connexion DN 65 for pump version
Discharging : Removable feeding pipe DN 50
Dimensions : Lenght 1000 x Width 700 x Height 800 mm
Weight : 220 kg
Parts in contact with the product : Stainless steel V2A
Machine housing : Stainless steel V2A
Drive :
Directly flanged at bearing shield
with direct drive of working tools
Speed : 3000 rpm
Power : 15 kW
Operation voltage : 400 V , 50 Hz
Control voltage : 110 V
Power requiement : 11 kW / 25 A curve D
Emergency button
Cutting Head
Feeding disc with feeding spiral
Slanted tooth cutting ring from 0,05 to 3 mm
Output from 300 to 1000 kg p/hour depending on product
Machine chassis stainless steel movable
Load part contactor control with starting-step and heater mounted in the machine housing
Control via push buttons
Recycling system, many tools,...
Also existing in MCH 10
Purees, stuff, emulsions,...

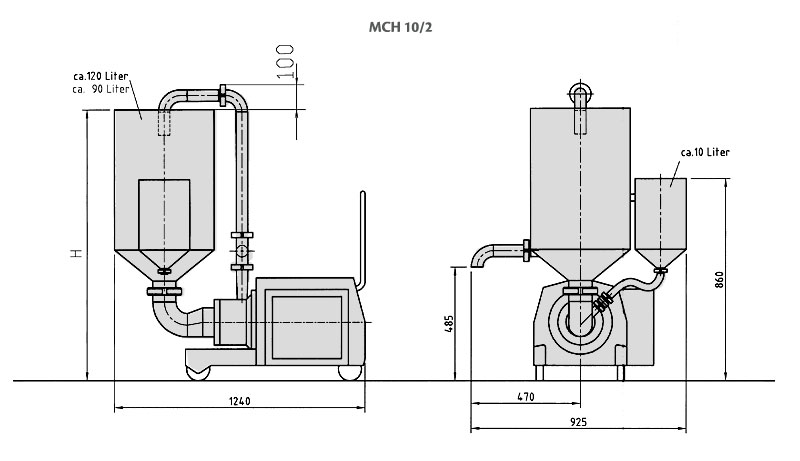

Dimensions of the machine
For different volumes of production !
Please see our range of other Stephan® Mirocut
Do not hesitate to contact us if you wish to test our machines or to schedule a demonstration on our machines in Lognes (France).
