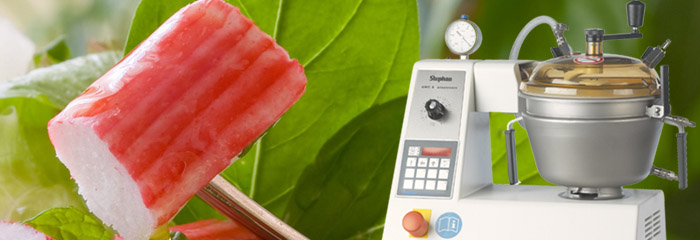

The UMC5 Universal machine is used anywhere it is necessary to realize a lots of operation well and fastly with only one machine such as grinding, mixing, cutting, emulsifying, heating and undirect cooling with a vacuum system up to 100mbar and with a constant control of the temperature.
It is an easy using machine standardly fully equiped with an easy and fast cleaning, deal in all the Research and Devellopment departements.
The shaft with its strong motor is working in a bowl especially studied and is used as a support for working tools suitable according to the needs. The mass in the bowl is strictly running toward the rotative tools which modify it. A supplementary movement is obtained by the scraper which comes of the hard or sticky products from the jacket of the bowl and bring them back to the center. So the mixing is very speed and homogeneous.
Times of process faster, the several using and the easy handling of Stephan® machine rationalize work processes and bring to a better profitability.
Product

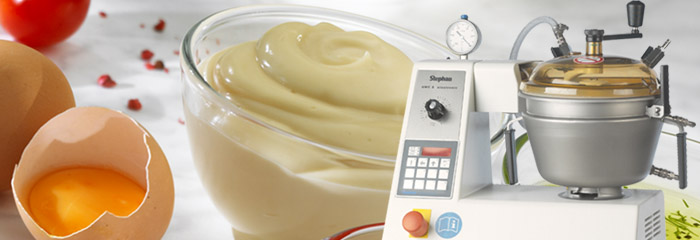

- Mayonnaise

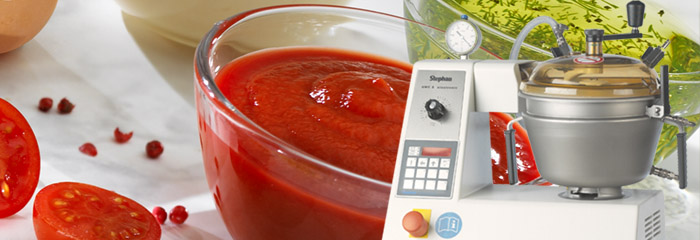

- Ketchup
- Dressings
- Dips
- Baby food
- Ready meals
- Confectionery
- Marzipan
- Surimi
- Dispersions
- Emulsion

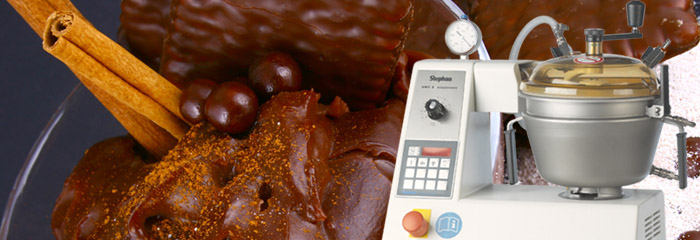

- Chocolate
- Pastry
- Pharmacy
- Cosmetics
Description of the machine
Bowl size : 5 liters
Capacity : From 0,5 to 3 liters max
Dimensions : Lenght 450 x Widht 260 x Height 550 mm
Weight : 48 kg
Working temperature : 95°C maximum
Working pressure : 0 bar
Parts in contact with the product : Stainless steel V2A, polyamid
Drive : Continously Variable speed
Speed : From 300 to 3000 rpm
Power : 0,75 kW
Operating voltage : 220 V , 50 Hz
Control voltage : 24 V
Power requirement : 3 kW / 20 A curve D
Supplementary ventilator : Integrated in the chassis for working at low speed
Touch panel
Emergency button
Stainless steel bowl V2A
With double jacket - hot/cold water
Vacuum unit with manometer and stop valve
Sampling cock mounted at the cover for sampling liquids
Safety unit vent connection with flap mounted at the cover

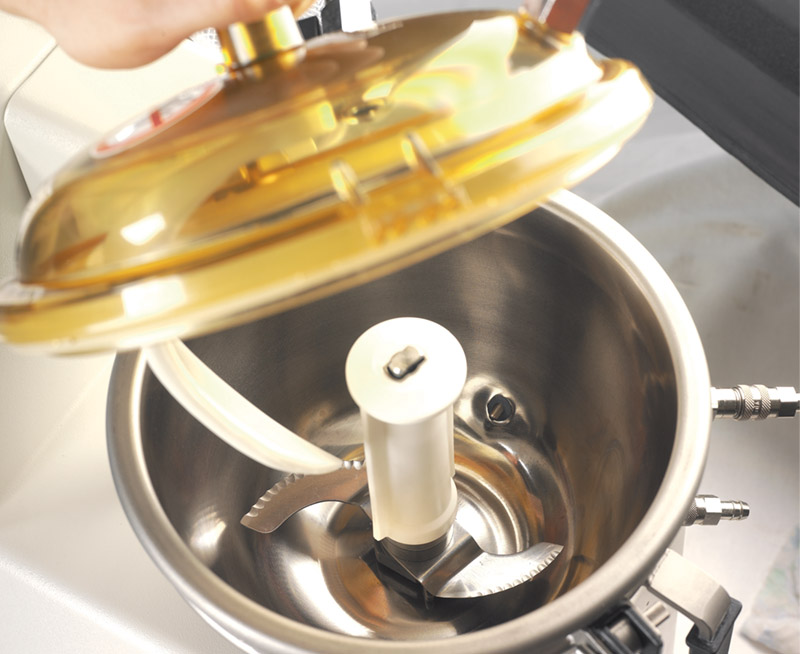

Stainless steel and polyamid knife shaft with two knives
Polyamid mixing arm
White polystrol chassis machine RAL 9002
Soft touch keybord 3011 for main motor, temperature display and for working process time by switch, digital with temperature feeler type PT 100 2L mounted in the movable bowl
Heating device, vacuum pump,..

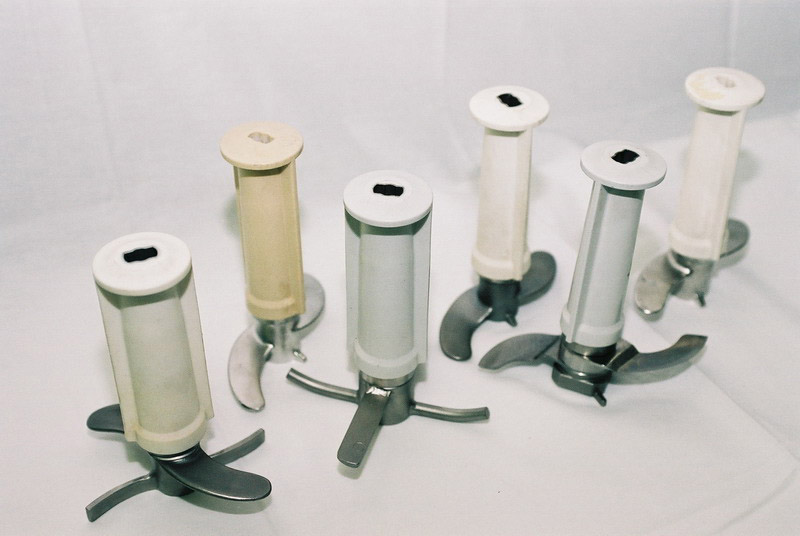

Wide range of tools :
wave-cut knives, wide knives, mixing insert, insert for small quantities, knead insert,..
Emulsions, suspensions, liquid and solid mixing, ointments, creams, gels, pastes, solutions, ganaches, Liver paté, sauces

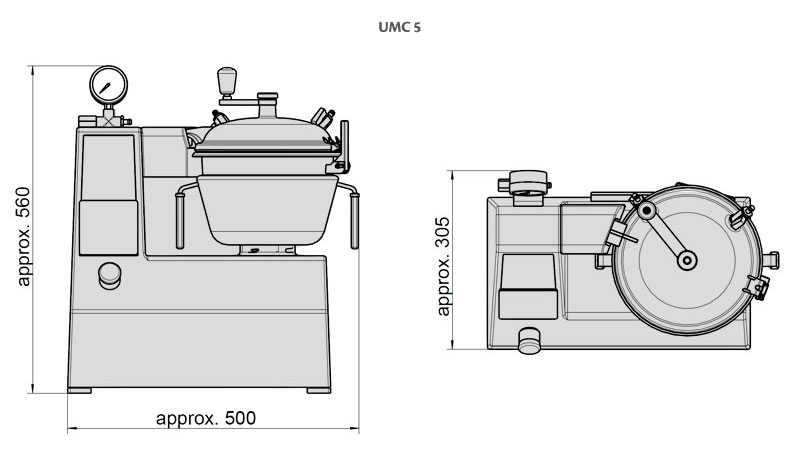

Dimensions of the machine
For different volumes of production !
