Stephan Food Service Equipment closes the gap between the 12 and 44 litre batch sizes with the new Stephan® UM 24, topping off the selection of Universal Machines. In doing so, Stephan is meeting the requirements of customers around the world while adding even more benefits to the list of advantages for Stephan Universal Machines.
Traditional characteristics of Stephan Universal Machines include universal application, durability, short batch times and the ability to handle several process steps with a single machine. Development of the UM 24 placed special emphasis on user-friendliness as well as meeting current hygiene standards with ease. Changes are also visible on the outside, especially in the structure and layout of the machine.
Like all other Stephan Universal Machines, the UM 24 is extremely versatile when it comes to cutting, mixing, kneading or emulsifying etc. It is especially well suited for the production of bread and bakery products, meat and sausages, convenience food, confectionery and dairy product.
55 years of research, development and deployment of progressive technology has resulted in top-class machines with a global reputation throughout the food processing industry. In the international food industry, the name Stephan stands for premium Universal Machines with bowl sizes from 5 to 200 litres.
Advantages :
- Stable emulsions
- Homogeneous mixing
- User-friendliness
- Short batch times
- Easy to clean
- Constant product quality
... Do not hesitate to cool us, we would be pleased to help you!
For cutting, mixing or emulsifying.
The Stephan® UM 24 is employed if a single machine is required to execute reliably and quickly a wide range of processing functions, such as cutting, fine cutting, mixing, stirring, kneading, making purees and emulsifying and working under vacuum.
It is ideal for use in all fields of food processing, e.g. for the production of bread and bakery products, meat and sausages, convenience food, confectionery and dairy products.
The product contact parts of bowl and cover are made of 1.4301 or similar (V2A).
The surface is bead blasted. The support is made of stainless steel, too. The working tools are made of stainless steel and are consisting of a knife shaft and two knives as well as a mixing baffle with PFDV scraper for manual handling. A sight glass and a lamp are installed on the cover. The machine is equipped with a tilting device for easy product discharge.
The main motor – equipped with frequency converter - is controlled by soft touch panel 3011. The readout appears in 2 lines in an illuminated LCD display. The operated keys are illuminated as well. A timer is included.
The Stephan UM 24 is also available with bowl with double jacket for indirect cooling or heating of the bowl contents – see different identification numbers on 2nd page.
In this case there is existing a temperature indication and the possibility to use a temperature setpoint value for shutoff by soft touch keyboard.
Product
- Mayonnaise
- Ketchup
- Dressings
- Dips
- Baby food
- Ready meals
- Confectionery
- Marzipan
- Surimi
- Dispersions
- Emulsion
- Chocolate
- Pastry
- Pharmacy
- Cosmetics
Description of the machine
Contenance de la cuve : 24 litres
Capacité de charge : De 5 à 18 litres max.
Encombrement : Longueur 900 x Largeur 525 x Hauteur 1200 mm
Poids : 230 kg
Température de travail : 95°C maximum
Pression de travail : 0 bar
Pièces en contact avec le produit : Acier inoxydable 304 L
Moteur : Avec variateur de vitesse
Vitesse : De 300 à 3000 t/min
Puissance : 10 kW
Tension d’alimentation : 400 V , 50 Hz - triphasé + neutre + terre
Puissance de raccordement : 10 kW / 25 A courbe D
Cuve en acier inoxydable sur le moteur principal
Bras mélangeur en polyamide pour utilisation manuelle
Basculable manuellement pour vidange du produit
Parties en contact avec le produit en acier inoxydable.
Surface microbillée.
Châssis en acier inoxydable.
Outils de travail en acier inoxydable
Hublot et lampe sur le couvercle.
Système de basculement pour faciliter la vidange du produit.
Moteur principal avec variateur de vitesses
Clavier digital 3011 pour affichage de la température du produit et programmation du temps de travail, thermomètre digital avec sonde de température type PT 100 2L montée dans la cuve amovible.
Double paroi
Pompe à vide
Sonde de température
Electrovanne
Couteaux lisses ou couteaux scies
Three-phases-autotransformer for 200-208-220-230 V/50…60 Hz
Heating device - only for UM 24 with double jacket
Transportation facilities
Vacuum pump (water)
Vacuum unit
Broyer, mélanger, couper, pétrir, émulsionner, cutterer…

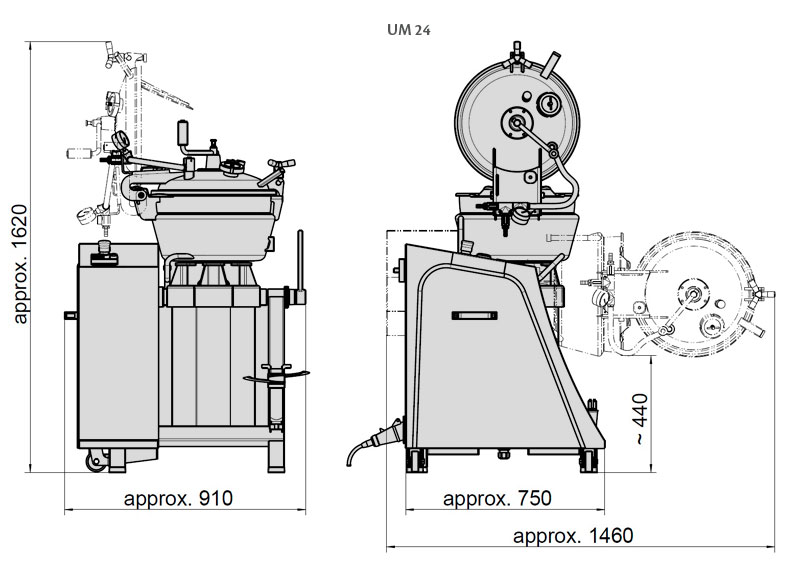

Dimensions of the machine
For different volumes of production !
Please see our range of other Stephan® Universal Machines
Do not hesitate to contact us if you wish to test our machines or to schedule a demonstration on our machines in Lognes (France).
