Universal machines type UM12 are useful for cutting, mixing, kneading, emulsifying. The UM 12 perfectly matches to the need of all branches. It is useful everywhere when it is necessary to realize ideal end products with a constant quality.
The Stephan® UM12 has several functions and is easy handling. It allows savings of time, low costs of maintenance, a vacuum system, a work at the requested temperature thanks to the double jacket...
The Stephan® UM12 improves the conservation of the products. The appropriate using of the vacuum unit during the process brings a delicate fondant to the end product and a better sharing and mixing of the flavour. Moreover, by the evacuation of the air, the microbiological activity is reduced indeed even stopped, which means a longer conservation of the product.
The times of process faster, the several using and the easy handling of Stephan® machine rationalize work processes and bring to a better profitability.
Product
- Mayonnaise
- Ketchup
- Dressings
- Dips
- Baby food
- Ready meals
- Confectionery
- Marzipan
- Surimi
- Dispersions
- Emulsion
- Chocolate
- Pastry
- Pharmacy
- Cosmetics
Description of the machine
Bowl size : 12 liters
Capacity : De 2 à 8 litres maximum
Dimensions UM12A : Heigth 600 mm x Length 550 x Widthr 340 mm
Dimensions UM12I : Heigth 1100 mm x Length 900 x Width 600 mm
Weight UM12A : 58 kg
Weight UM12A : 120 kg
Working temperature : 95°C maximum
Parts in contact with the product : Acier inoxydable 304 L
Machine chassis UM12A : Machine chassis Polystrol - control cabinet grey-white, RAL 9002

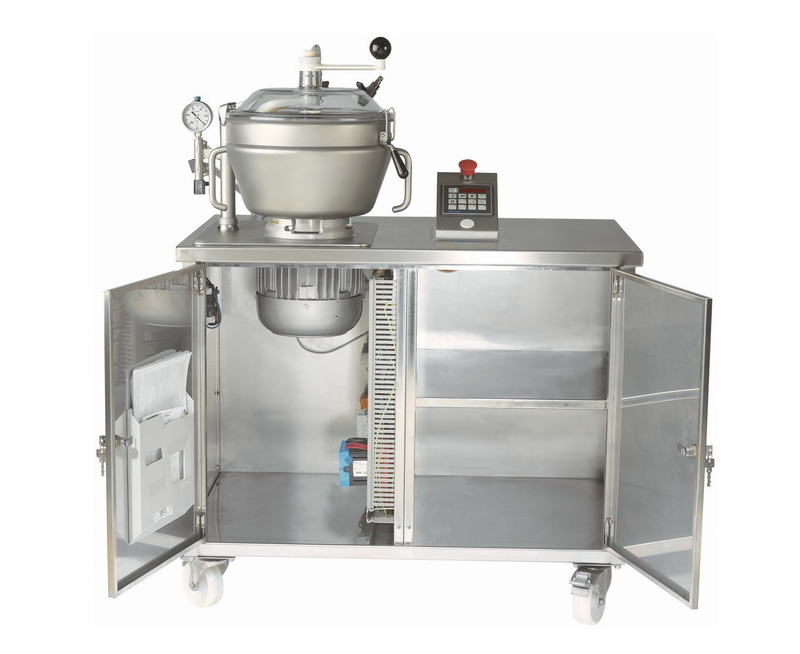

Machine chassis UM12I : Stainless steel V2A
Drive :
Mounted in the machine chassis with direct drive of knife shaft
Bowl receiver with bayonet fixing
Vitesse : 1500 / 3000 ou 750 / 1500 tr/min.
Power : 1.5 / 1.9 ou 0.6 / 1.2 kW
Operating voltage : 400 V , 50 Hz
Control voltage : 24 V
Power requirement : 2 kW / 16 A courbe D
Electronic brake : For the main motor, in the electrical cabinet
Emergency button
Stainless steel bowl on the main drive. Manually removable for the emptying of the product

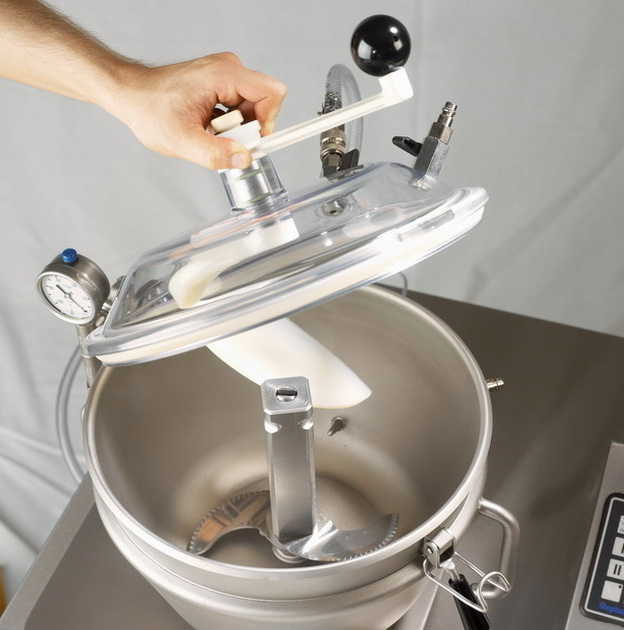

Transparent polycarbonat cover
Stainless steel knife shaft plugged and fixed at knife shaft with 2 knives
Polyamid mixing arm for a manual using
For main motor mounted in separate control box.
Soft digital keyboard 3011
Double jacket, vacuum pump, temperature feeler.
High number of tools : wave-cut knives, angle-bent knives, mixing insert...
Emulsions, suspensions,solid and liquid mixing, chocolate fillings, ganache, stuff, delicatessen products, all type of pastes...
Emulsions, suspensions, solid and liquid mixing, chocolate fillings, ganache, coating, almond paste, chocolate paste, creams...

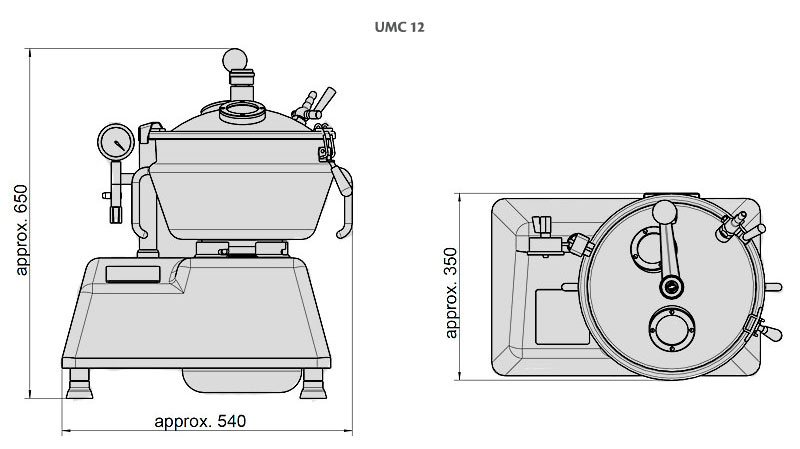

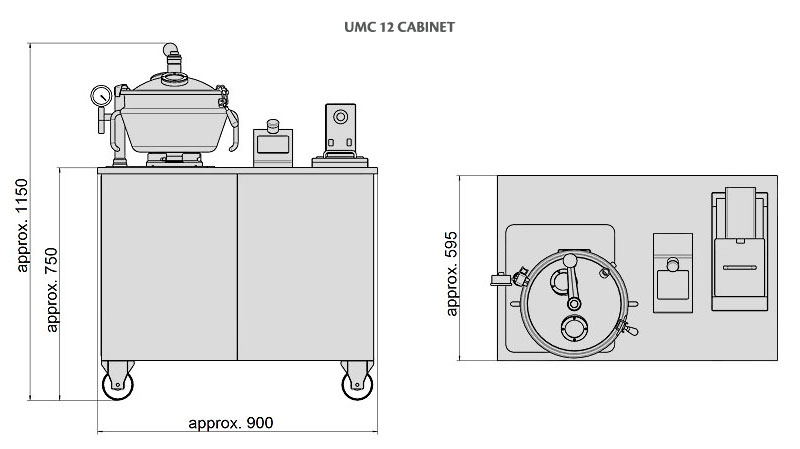

Dimensions of the machine
For different volumes of production !
Please see our range of other Stephan® Universal Machines
Do not hesitate to contact us if you wish to test our machines or to schedule a demonstration on our machines in Lognes (France).
