Universal machines type UM44 are useful for cutting, mixing, kneading, emulsifying ; only one Stephan® machine for several processes. It means one investiment, an optimal using of the machine and a flexible planning of production. Thanks to its different executions and full additionnal equipments, the Stephan® machine is perfectly fitting to the needs of all branches.
The Stephan® Universal Machines are easy handling. They are the result of a long experience and a continous technical development. A modern process of fabrication and raw materials of quality insure a reliable and robust machine. With a speed rotation of 1500 and 3000 per minute, soft, hard, stringy, viscous or dry materials are intensively worked and changed into an homogeneous product.
Times of process faster, the several using and the easy handling of Stephan® machine rationalize work processes and bring to a better profitability.
Product
- Mayonnaise
- Ketchup
- Dressings
- Dips
- Baby food
- Ready meals
- Confectionery
- Marzipan
- Surimi
- Dispersions
- Emulsion
- Chocolate
- Pastry
- Pharmacy
- Cosmetics
Description of the machine
Bowl size : 44 liters
Capacity : From 8 to 30 liters max

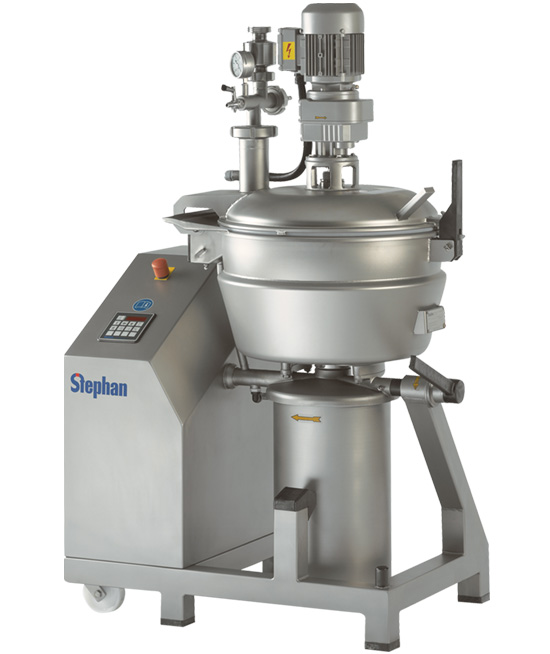

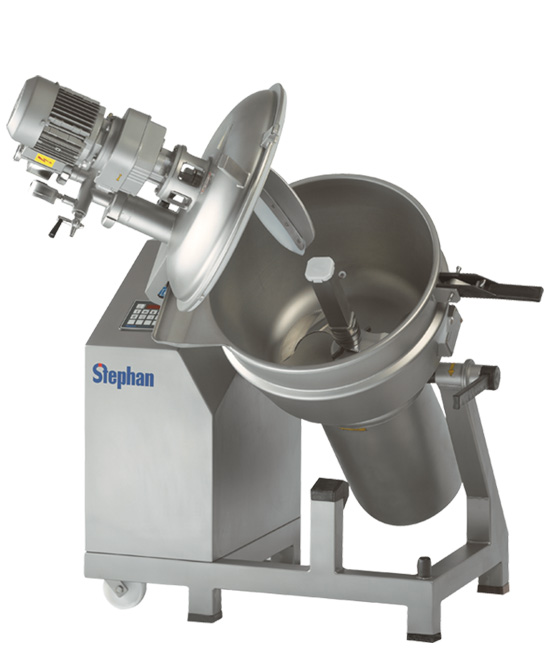

Dimensions Um44e : Length 1290 x width 1395 x Height 1500 mm

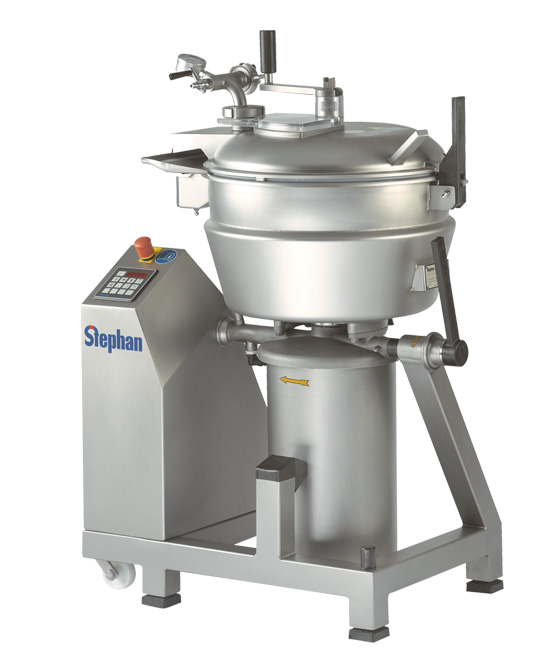

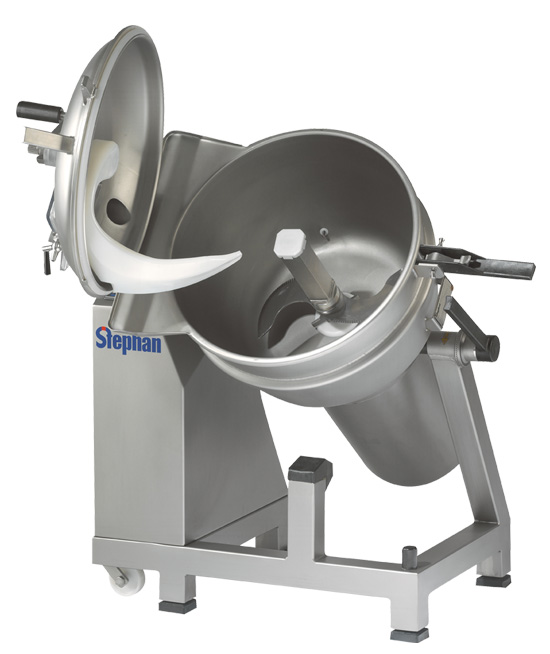

Dimensions Um44i : Length 1120 x width 1395 x Height 1500 mm
Weight Um44e : 180 Kg
Weight Um44i : 120 Kg
Working temperature : 95°C Maximum
Working pressure : 0 Bar
Parts in contact with the product : Stainless steel V2A
Machine chassis : Stainless steel V2A
Drive : With motor hood directly flanged at the bowl with direct drive of knife shaft
Speed : 1500 / 3000
Operation voltage : 400 V , 50 Hz
Control voltage : 24 V
Power requirement Um44e : From 6 to 10 kW / 20 to 25 A curve D
Power requirement Um44i : From 6 to 8,5 kW / 20 A curve D
Brake : Disc brake for main motor
Emergency button

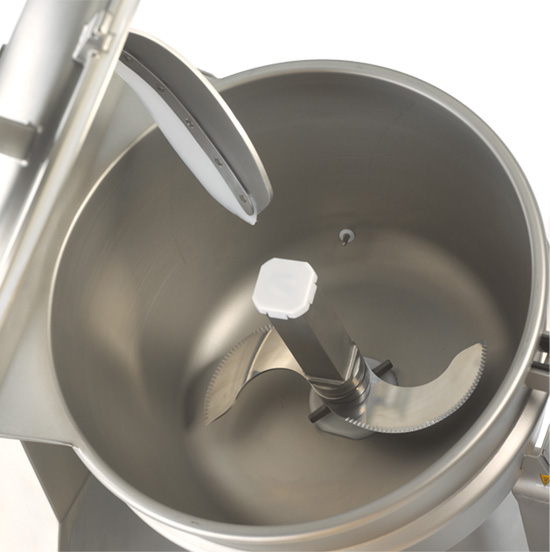

Stainless steel bowl on the main drive. Manually removable for the emptying of the product
Stainless steel cover

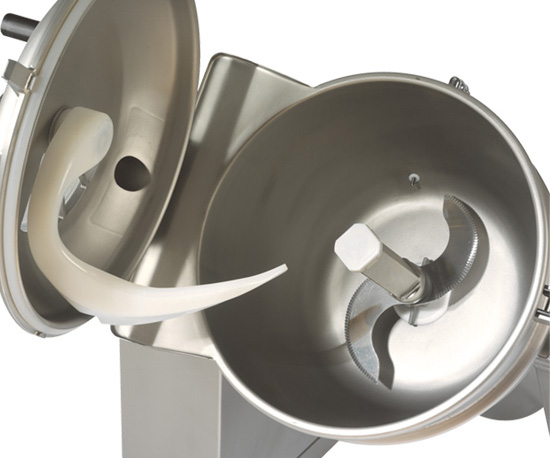

Stainless steel knife shaft plugged and fixed at knife shaft with 2 knives
Polyamid mixing arm or in stainless steel with scraper.
Motor drive with flange linked to the cover.
Emergency button
Stainless steel bowl on the main drive. Manually removable for the emptying of the product.

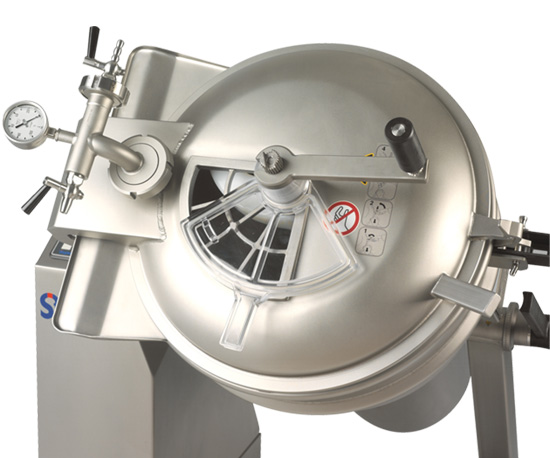

Stainless steel cover
Stainless steel knife shaft plugged and fixed at knife shaft with 2 knives
Wide knives or wave-cut knives.
Polyamid mixing arm for a manual using.
For main motor mounted in separate control box - Soft touch keybord 3011 for main motor, temperature display and for working process time by switch.
Soft touch keybord 3010 with speed 1 or 2 for main motor or soft touch keybord 3011 for main motor, temperature display and for working process time by switch.
Double jacket, vacuum pump, temperature feeler, frequency control, reinforced motor.
Chocolate fillings, ganache, delicatessen, sauces, all types of pastes

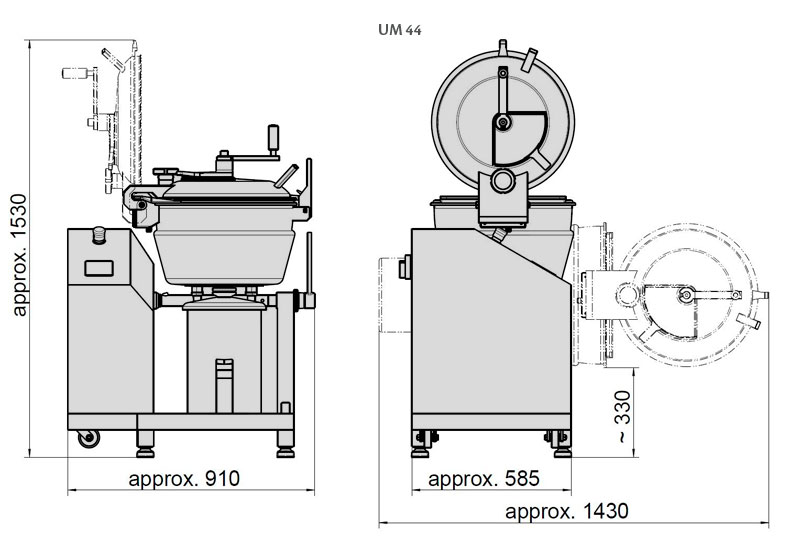

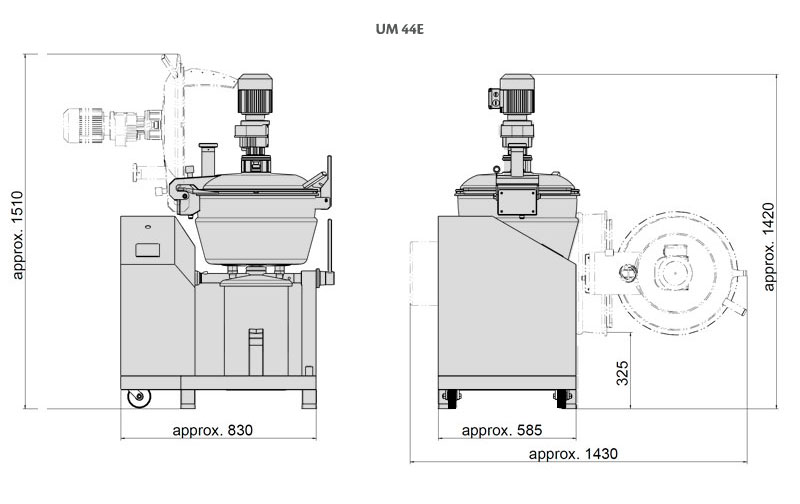

Dimensions of the machine
For different volumes of production !
Please see our range of other Stephan® Universal Machines
Do not hesitate to contact us if you wish to test our machines or to schedule a demonstration on our machines in Lognes (France).
